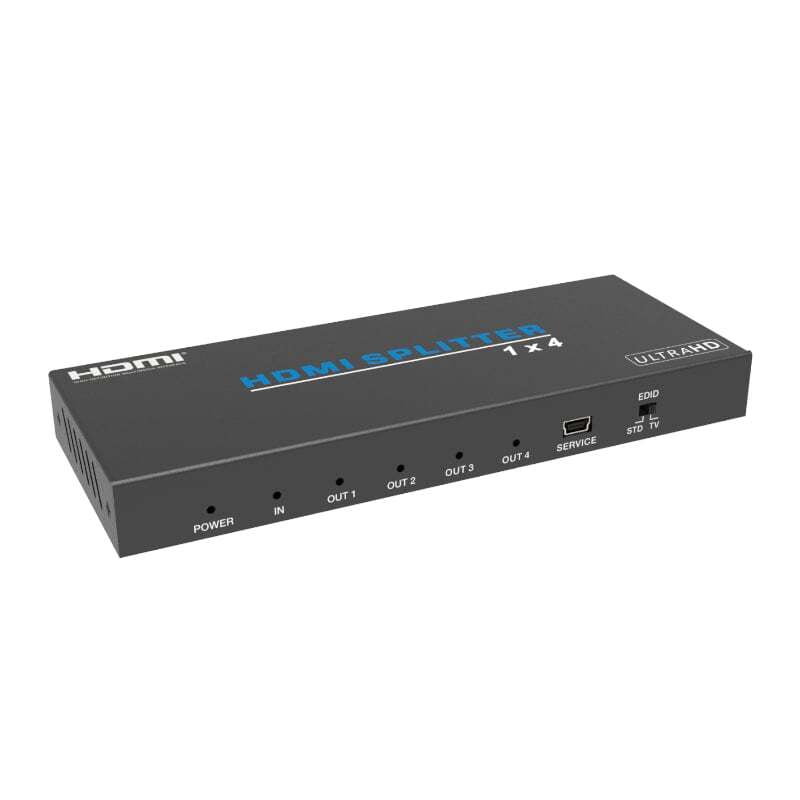

HDVB14IH HDCVT 14 HDMI 2.0 Splitter Supports HDCP 2.0 EDID and HDR
R562.00
The HDCVT 14 HDMI 2.0 18Gbps Splitter is an advanced solution for splitting a single HDMI source to 4 HDMI displays. It provides highperformance audio and video up to 4K2K@60Hz (4:4:4) and is capable of receiving retiming and transmitting up to 18Gbps of bandwidth with no data loss. (Supporting the latest features you can be assured of reliable and highquality HDMI distribution.)FEATURES:HDMI 2.0b HDCP 2.2 CompliantSupport video format up to 4K2K@60Hz with 8 bit RGB/YCBCR 4:4:4/YCBCR 4:2:2Supports 3D frame sequential video format up to 1080p@60Supports 3D frame sequential video format up to 4K2K@30HzSupports highresolution VESA mode video format up to QSXGA@60HzSupports LPCM 7.1CH Dolby TrueHD and DTSHD Master AudioSupports smart EDID controlCompact design for an easy and fleible installationSPECIFICATIONS:Chassis Material: MetalSilkscreen Colour: BlackPower Consumption: 2WPower Supply Output: DC 5V/1A (US/EU standards CE/FCC/UL certified)Video Bandwidth: 600MHz/18GbpsInput Port: 1 HDMI Type A (19pin female)Output Ports: 4 HDMI Type AVideo Resolution: 480i~1080p@50/60Hz 4K2K@24/25/30/60HzESD Protection: Human body model ±8kV (Airgap discharge) & ±4kV (Contact discharge)Operating Temperature: 0°C ~ 40°CStorage Temperature: 20°C ~ 60°CRelative Humidity: 20~90% RH (noncondensing)Product Dimensions: 6.3 16.3 1.6 cmProduct Weight: 260gWHATS IN THE BOX:HDCVT 14 HDMI 2.0 18Gbps Splitter Black 15V/1A Power Adapter 1User Manual 1]]>
Product Details
The HDCVT 14 HDMI 2.0 18Gbps Splitter is an advanced solution for splitting a single HDMI source to 4 HDMI displays. It provides highperformance audio and video up to 4K2K@60Hz (4:4:4) and is capable of receiving retiming and transmitting up to 18Gbps of bandwidth with no data loss. (Supporting the latest features you can be assured of reliable and highquality HDMI distribution.)FEATURES:HDMI 2.0b HDCP 2.2 CompliantSupport video format up to 4K2K@60Hz with 8 bit RGB/YCBCR 4:4:4/YCBCR 4:2:2Supports 3D frame sequential video format up to 1080p@60Supports 3D frame sequential video format up to 4K2K@30HzSupports highresolution VESA mode video format up to QSXGA@60HzSupports LPCM 7.1CH Dolby TrueHD and DTSHD Master AudioSupports smart EDID controlCompact design for an easy and fleible installationSPECIFICATIONS:Chassis Material: MetalSilkscreen Colour: BlackPower Consumption: 2WPower Supply Output: DC 5V/1A (US/EU standards CE/FCC/UL certified)Video Bandwidth: 600MHz/18GbpsInput Port: 1 HDMI Type A (19pin female)Output Ports: 4 HDMI Type AVideo Resolution: 480i~1080p@50/60Hz 4K2K@24/25/30/60HzESD Protection: Human body model ±8kV (Airgap discharge) & ±4kV (Contact discharge)Operating Temperature: 0°C ~ 40°CStorage Temperature: 20°C ~ 60°CRelative Humidity: 20~90% RH (noncondensing)Product Dimensions: 6.3 16.3 1.6 cmProduct Weight: 260gWHATS IN THE BOX:HDCVT 14 HDMI 2.0 18Gbps Splitter Black 15V/1A Power Adapter 1User Manual 1]]>
